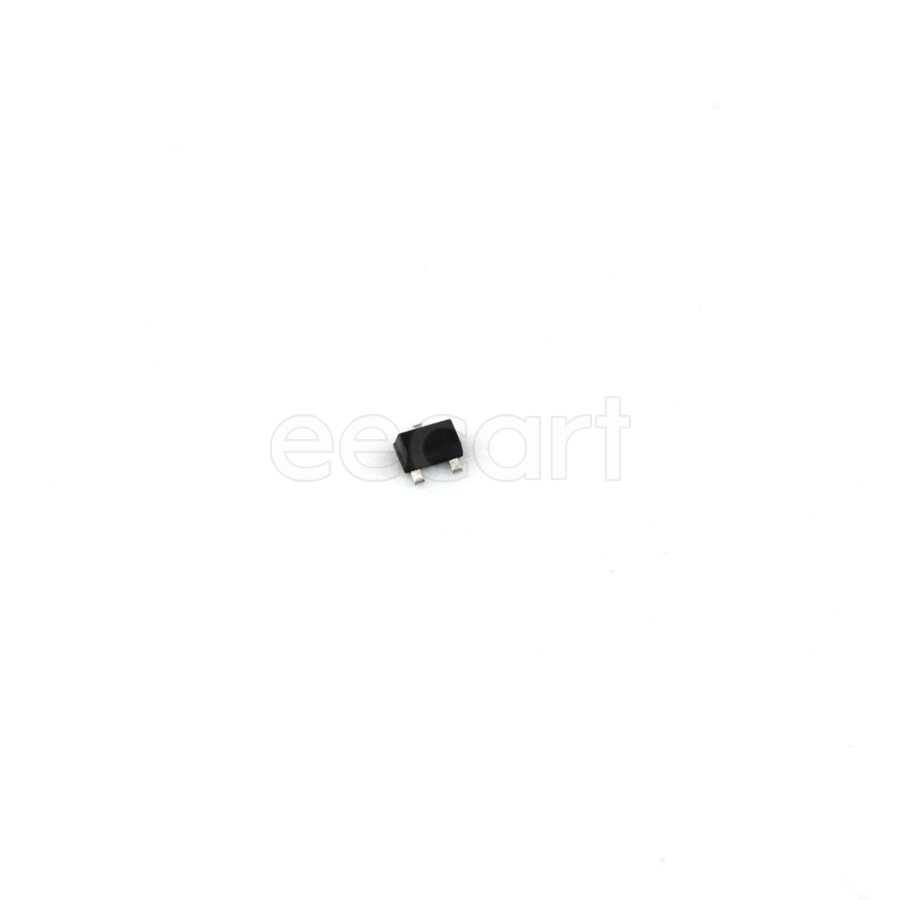

2SAR522EBTL
Manufacturer:
Rohm Semiconductor
Mfr.Part #:
2SAR522EBTL
Datasheet:
Description:
BJTs EMT3F SMD/SMT PNP 150 mW Collector Base Voltage (VCBO):-20 V Collector Emitter Voltage (VCEO):300 mV Emitter Base Voltage (VEBO):-5 V
| Parameter | Value |
|---|---|
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Reel |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Polarity | PNP |
| Contact Plating | Tin |
| Number of Terminals | 3 |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Max Power Dissipation | 150 mW |
| Power Dissipation | 150 mW |
| Max Collector Current | 200 mA |
| Collector Emitter Breakdown Voltage | 20 V |
| Transition Frequency | 350 MHz |
| Continuous Collector Current | -200 mA |
| Element Configuration | Single |
| Collector Emitter Voltage (VCEO) | 300 mV |
| Max Breakdown Voltage | 20 V |
| Gain Bandwidth Product | 350 MHz |
| Collector Base Voltage (VCBO) | -20 V |
| Collector Emitter Saturation Voltage | -120 mV |
| Emitter Base Voltage (VEBO) | -5 V |
| hFE Min | 120 |
| Max Cutoff Collector Current | 100 nA |
| Transistor Type | PNP |
Stock: 46
Distributors
pcbx
pcbxUnit Price$0.25210
Ext.Price$0.25210
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.25210 | $0.25210 |
| 10 | $0.22361 | $2.23610 |
| 50 | $0.19834 | $9.91700 |
| 100 | $0.17134 | $17.13400 |
| 500 | $0.14802 | $74.01000 |
| 1000 | $0.13869 | $138.69000 |
| 3000 | $0.12995 | $389.85000 |
| 5000 | $0.12211 | $610.55000 |
